隨著智能消防設備的發展，帶圖像的消防設備收到用戶的熱捧，尤其是智能消防水炮系統和圖像型火災探測器系統。智能消防水炮在場景中使用數量較少，布線也簡單;但是圖像型火災探測器的使用數量較多，布線方式多種多樣，怎么布線簡單，省錢，布線的速度還快呢?下面川消小編為您分析：

With the development of intelligent firefighting equipment, image-based firefighting equipment has received great popularity from users, especially intelligent firefighting water monitor systems and image-based fire detector systems. The number of intelligent fire water monitors used in the scene is relatively small, and the wiring is also simple; However, there are a large number of image type fire detectors used, and there are various wiring methods. How can they be easily wired, save money, and have a fast wiring speed? Below, the editor of Chuanxiao will analyze for you:

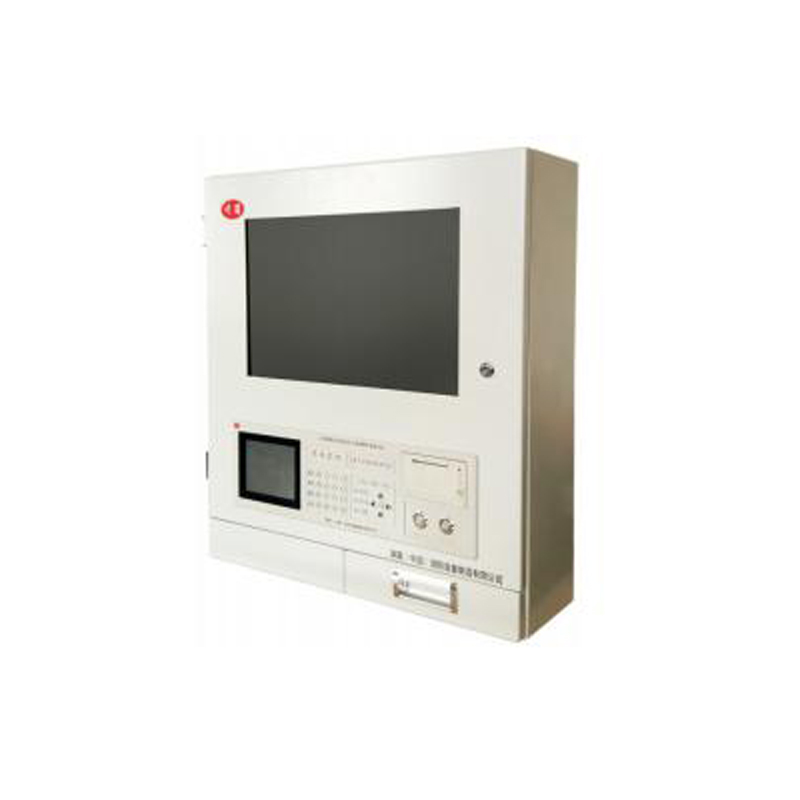

圖像型火災探測器常規的線路只有24V電源線，傳輸視頻的網線，有的廠家可能還需要傳輸信號的信號線，而采用川消的圖像探測器主機的話，視頻線具有傳輸信號的作用，所以不需要信號線就能完成布線。

The conventional wiring for image type fire detectors only has a 24V power line and a network cable for transmitting video. Some manufacturers may also need a signal line for transmitting signals. However, if using the image detector host of the Chuanxiao brand, the video line has the function of transmitting signals, so the wiring can be completed without a signal line.

但是，幾十臺圖像型火災探測器分布在不同的防火區域，電源線還好說，但是使用網線布置的時候，不但使用的數量多，線路復雜;而且網線的傳輸距離受到限制，常用的網線的傳輸距離小于100米。

However, dozens of image type fire detectors are distributed in different fire prevention areas, and the power cord is easy to say. However, when using network cable layout, not only does it require a large number of users, but the circuit is complex; Moreover, the transmission distance of network cables is limited, with commonly used network cables having a transmission distance of less than 100 meters.

有懂行的用戶可能會說，網線多采用交換機級聯就可以了啊，這樣的方式可行，但是要么使用的網線多，要么使用的交換機數量多，一級一級的節點布置，在后期一旦有視頻出現問題，查線麻煩。

Experienced users may say that using switch cascading for network cables is sufficient. This approach is feasible, but either a large number of network cables are used or a large number of switches are used. The arrangement of nodes at each level can be troublesome in case of video problems in the later stage.

也有用戶說，使用光纖就可以這樣的問題了吧，沒錯，但是光纖的連接有兩種方式，一種是普通的網絡交換機配光端機實現;另外一種就是光纖交換機。目前來說，使用光纖交換機是為便捷的一種方式。

Some users also say that using optical fiber can solve such problems, right? However, there are two ways to connect optical fibers: one is to use ordinary network switches with optical terminals; Another type is fiber optic switches. Currently, using fiber optic switches is a convenient way.

總結來說：

In summary:

使用網線，加上交換機，級聯的方式布線。

Use network cables, add switches, and cascade wiring.

使用網線，加上交換機，再加上光端機和光纖布線。

Use network cables, add switches, and add optical terminals and fiber optic cabling.

使用網線，加上光纖交換機和光纖匯聚器連接。

Use network cables, coupled with fiber optic switches and fiber optic aggregators for connection.

如果采用第二種方式，那么有幾個交換機就需要布置幾對光端機，對于在中控室的主機來說，光端機需要的數量較多。

If the second method is adopted, several pairs of optical terminals need to be arranged for several switches. For the host in the central control room, the number of optical terminals is relatively large.

為簡單的就是光纖交換機和光纖匯聚器。假如有100臺設備需要安裝，那么我們可以配置8電2光或者16電2光的交換機，大概需要13臺個或者7臺;配置一臺4光2電的匯聚器就可以完成視頻信號的布線。

The simplest ones are fiber optic switches and fiber optic aggregators. If there are 100 devices that need to be installed, we can configure switches with 8 power and 2 optical or 16 power and 2 optical, which will require approximately 13 or 7 devices; Configuring a 4 optical and 2 electrical concentrator can complete the wiring of video signals.

具體的配置可以咨詢川消廠家，使用效率高的布線方式，節省工期，節省人力，節省工程費用。還有怎樣的疑惑或者需求，就來我們網站http://www.xintli.net咨詢吧！

The specific configuration can be consulted with the Sichuan consumer electronics manufacturer, using efficient wiring methods to save time, manpower, and engineering costs. If you have any further doubts or needs, please come to our website http://www.xintli.net Consult!
